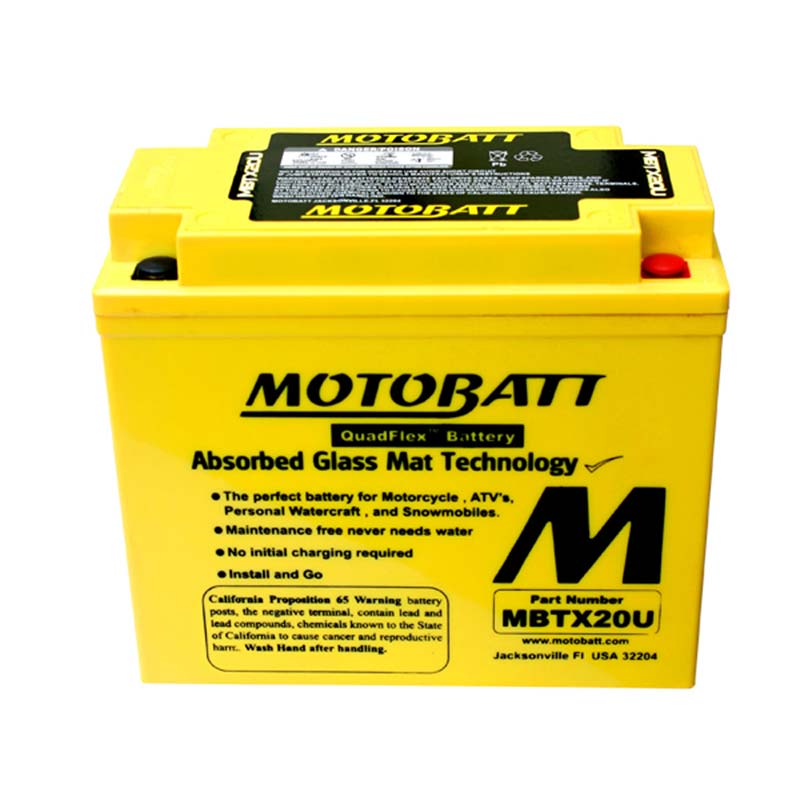

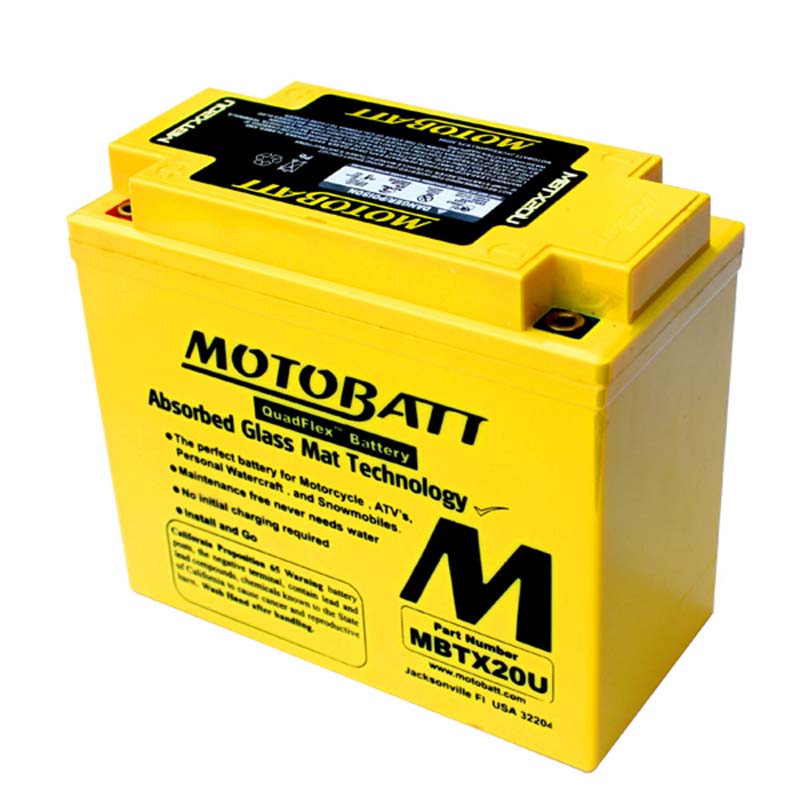

4-pole 21 Ah motorcycle battery MBTX20U | Motobatt
Regular price 109,95€Or 3 times 36,65€ with Alma
Free return within 30 days
2 years minimum warranty
Ref. : MBTX20U
Motobatt's QuadFlex batteries best balance cold cranking (CCA) and Amp-hour capabilities.
The MBTX20U battery thus has 20% more Amp-hours and 20% more cold cranking amps.
Motobatt uses the entire available space in the case to maximize plate dimensions. Thicker plate grids and higher density increase Amp-Hour capacity, longevity and cold cranking amps.
MBTX20U Battery Features
- high resistance by reinforced grids (pure lead-calcium);
- increased surface area per plate for better performance and longer life;
- military-grade, vibration-resistant fiberglass separators;
- multi-terminal design, easy to add accessories;
- factory activated, no acid to fill;
- very low self-discharge rate.
| Battery reference | MBTX20U |
| Voltage | 12V |
| CCA -18°C | 310 |
| Capacity (10h) | 21Ah |
| Weight | 6.5kg |

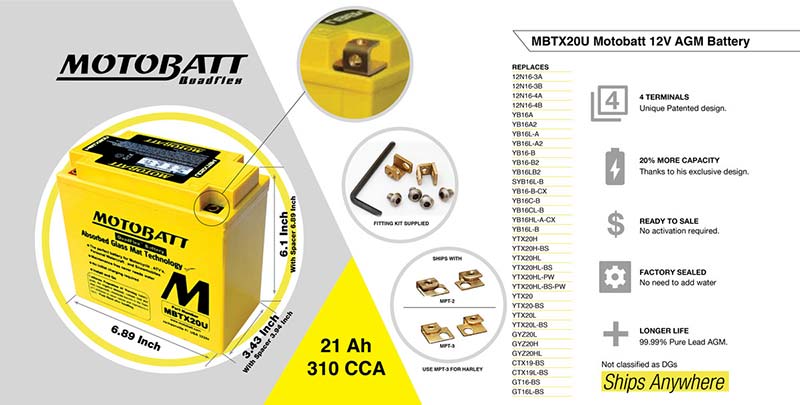

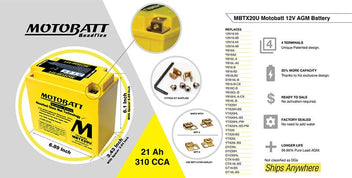

| Dimensions | L: 175 mm W: 87 mm H: 155 mm Tl: 100 mm TH: 175 mm |

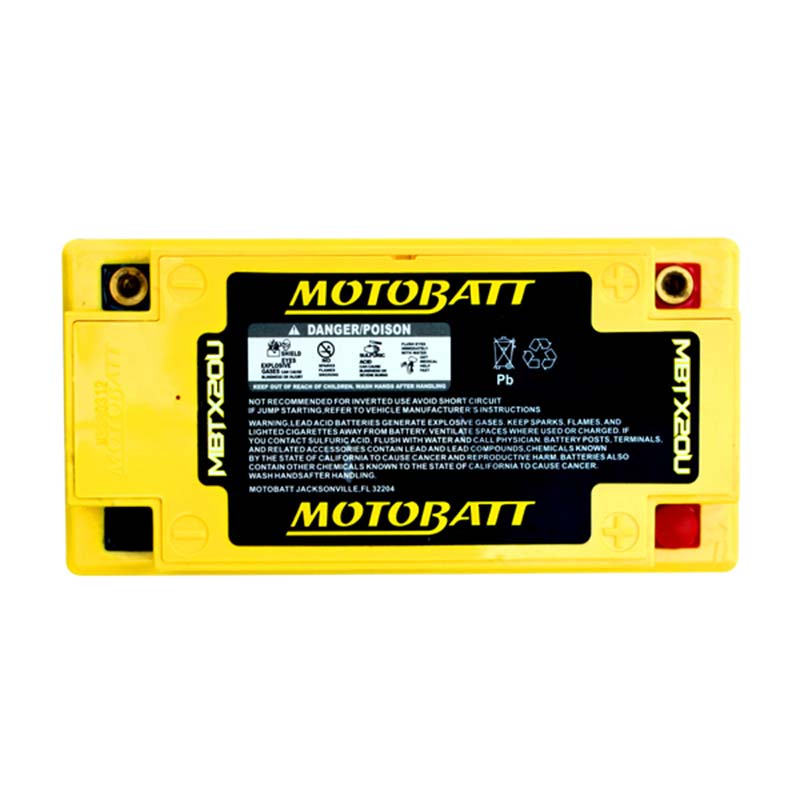

| Location of terminals |
4 |
| Terminals | 4, M6X2.5 (Part#2xMPT2 and #MPT3) |
| Screw | 4, M6X7 (Part#2xMPS2) |
| Allen screws | 1, 4x4 (Part#MPAK2) |
| Terminal caps | 4, 12x5.5 (Part#2xMPC2) |
| Spacing | 2, 20mm Bottom (Part#MPBS7), 13mm back (Part#MPSS |
Replace the batteries
Yuasa YTX20, YTX20L, YTX20BS, YTX20HBS, YTX20LBS, YTX20HLBS, YTX20HLBSPW, YTX20H, YTX20HL, YTX20HL-PW, YB16A, YB16A2, YB16B, YB16B2, YB16HLACX, SYB16LB, YB16LA, YB16LA2, YB16LB, YB16LB2, YB16CB, YB16CLB, YB16BCX, GT16L -BS, GT16BS, CTX19-BS CTX19L-BS , GYZ20H, GYZ20L, GYZ20HL
DEKA ETX16, ETX16L, ETX20,ETX20L
ODYSSEY PC535, PC625
MBTX20U battery manual (PDF 376.41 KB)
