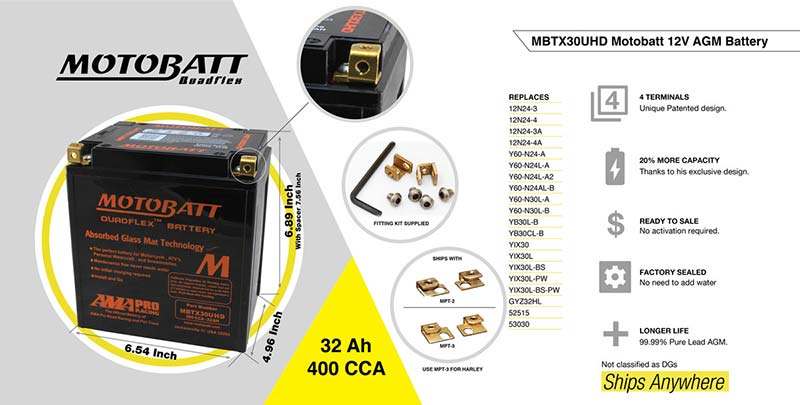

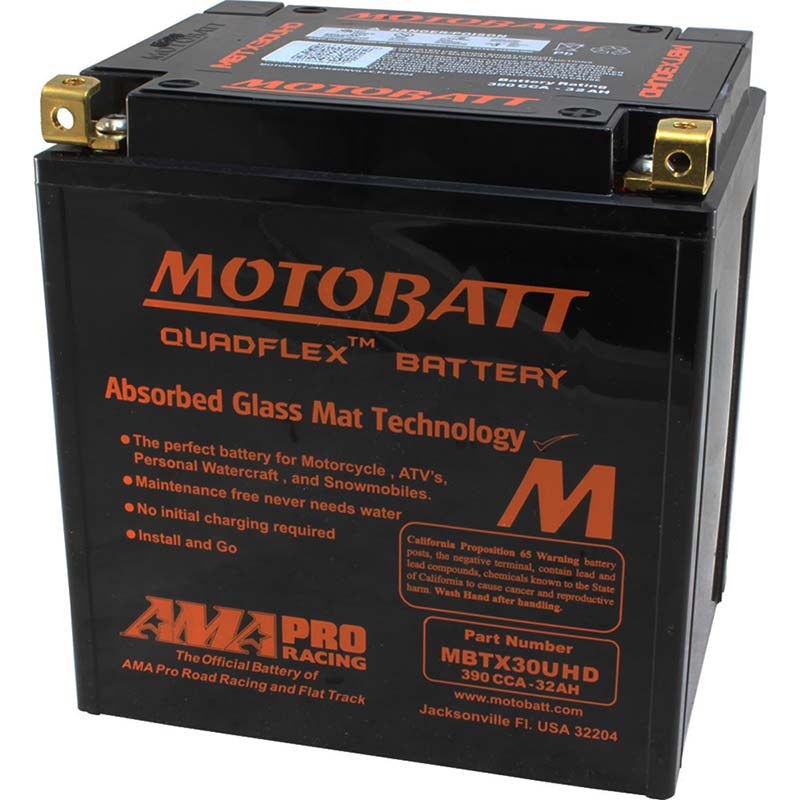

Ref. : MBTX30UHD
Ready to install on your motorcycle, Motobatt's QuadFlex battery (4 terminals) is factory activated. No risks associated with handling acid. Sealed, the MBTX30UHD is 100% waterproof.
Composed of 99.99% pure lead, the MBTX30UHD battery takes advantage of maximum use of the space available in the case. The integration of thicker plates thus increases the Ampere-hour capacity for a much more efficient cold start.
MBTX30UHD Battery Features
- 20% additional Ah;
- +20% cold cranking amps;
- high resistance by reinforced grids (pure lead-calcium);
- increased surface area per plate: better performance and longer life;
- 100% waterproof;
- military grade fiberglass dividers;
- resists vibration;
- factory activated, no acid to fill;
- very low self-discharge rate.
Battery reference | MBTX30UHD |
Voltage | 12V |
CCA -18°C | 390 |
Capacity (10h) | 32Ah |
Weight | 10.22kg |
Dimensions | L: 166mm W: 126mm H: 175mm TH: 192mm |
Location of terminals |
4 |
Terminals | 2, M6x2.5 (Part#MPT3) |
Screw | 4, M6X7 (Part#2xMPS2) |
Allen screws | 1, 4x4 (Part#MPAK2) |
Terminal caps | 4, 12x5.5 (Part#2xMPC2) |
Spacing | 17mm Bottom (Part#MPC2), 2 Square Top Corners (Part#MPSC) |
Replaces the following batteries
Y60N24A, Y60N24ALB, Y60N24LA, Y60N24LA2, 12N24 3, 12N24 3A, 12N24 4, 12N24 4A, YIX30L, YB30LB, YB30CLB, Y60N30LA, Y60N30LB, 53030.
MBTX30UHD battery manual (PDF 375.27 KB)
