PICO 3 in 1 Multi LED Turn Signals (Turn Signals/Tail/Stop Lights) | Motone Customs

The Motone Customs PICO MULTI LED turn signals are an all-in-one solution for motorcyclists looking for superior visibility and minimalist design. These compact lights combine the functions of a turn signal, brake light and tail light.

Ideal for custom motorcycles, this kit is compatible with several models, including Triumphs, thanks to various adaptable supports. Made of anodized aluminum, they combine robustness and lightness while offering a sober and elegant aesthetic .

Technical characteristics of the PICO Multi LED indicators

• reference: MFX004;
• color: black;

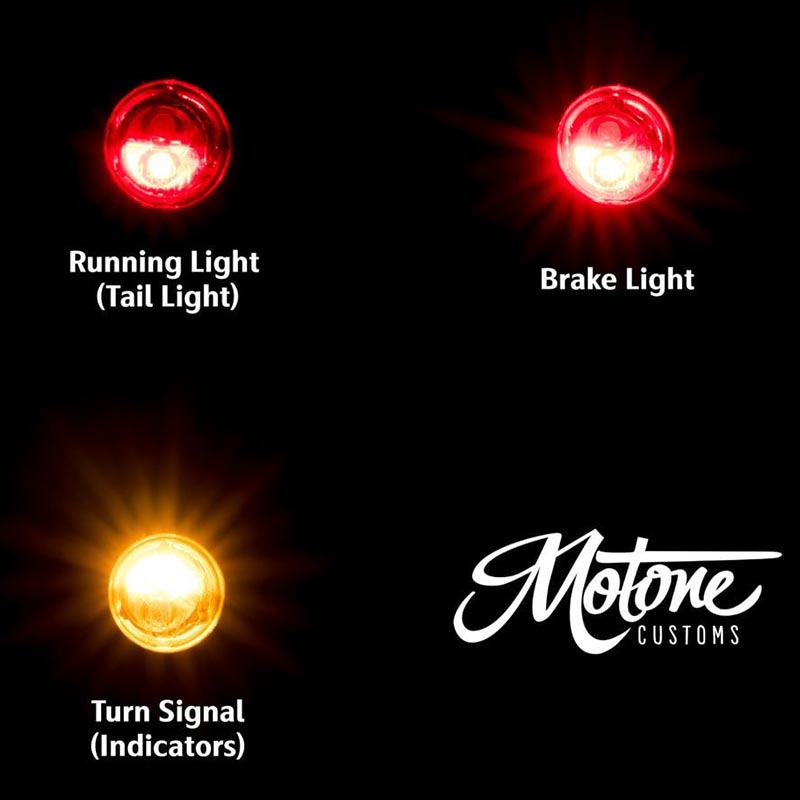

• 3-in-1 functions : turn signal, brake light, position light;
• material :
• high quality black aluminum housing;
• rubber sheath;
• Osram LED technology : long-lasting performance and energy saving;
• PMMA lens : TIR optical lens technology;
• waterproof ;
• approval : complies with ECE R148 standard;

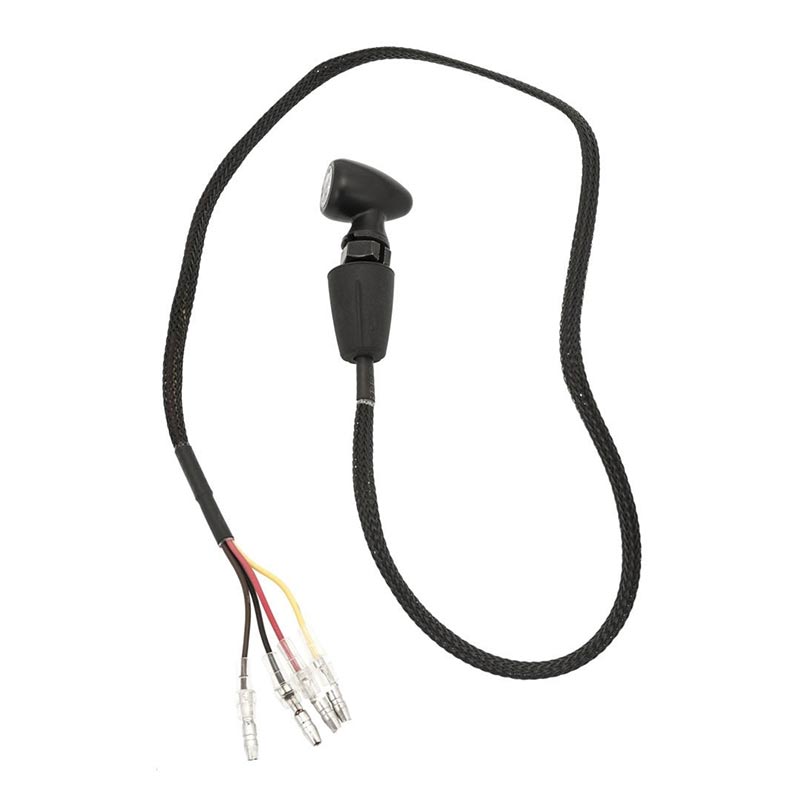

• Braided Cables : 3.9mm Bullet connectors for easy installation;
• dimensions :
• width: 18 mm;
• height: 44 mm;
• depth: 25.5 mm;
• M8 thread ;
• power :
• flashing: 1.2 W (brightness 77 Cd);
• position light: 0.5 W (brightness 9 Cd);
• brake light: 1.2 W (brightness 50 Cd);
• connectivity:
• red (brake light);
• yellow (flashing);
• brown (position light);
• black (ground);
• Power supply: DC 12V;
• sold in pairs.

Compatibility and mounting options

These lights are designed to fit a variety of brackets and motorcycles, including Triumph models (2016 and up). Specific brackets such as the Triline , Clampit , and Boomerang are available for mounting on the frame, forks, or under the seat, giving you maximum flexibility to customize your installation.

• TRILINE brackets (MMU005): mounting on the rear shock absorber.
• CLAMPIT brackets (MMU587): mounting on the 41mm front fork.
• Brass adapter brackets (ADT002) allow M8 indicators such as the PICO to be mounted directly onto the Triumph indicator position (2016 and up bikes).
• AJAX (MMU592): Specific to the Triumph Bobber, these brackets allow you to install signals to the rear of the bike using the airbox bolts.
• License Plate Brackets (MMU586): Adapter brackets that allow the lights to be mounted directly to your rear license plate bracket without the need to drill holes.
• Triumph LC Underseat Brackets (MMU521): Use the bolt holes under the rear of the seat to mount the indicators towards the rear of the frame - Liquid Cooled Bonneville (2016 to 2025+).
• AC Triumph Underseat Bracket (PTS001B): Underseat brackets for air-cooled Bonnevilles (2001-2015).
• Boomerang Bracket (MMU591): Fits on the bottom of the caliper for Street Twin/Speed ​​Twin 900.

Note: If the product sheet for the reference you are looking for is not yet available on our site, please use our contact form . We will satisfy your request as soon as possible.
